Without headlights and other lighting devices, driving in poor visibility conditions would be impossible. But it's not enough to just illuminate the road, it's important to find a balance. On one hand, the driver should be able to see everything clearly in the dark, and on the other hand, not blind other road users. Therefore, adjusting the headlights is a delicate and precise task.

What is the headlight of a car made of
How to adjust headlights yourself
How to properly adjust headlights
Headlight adjustment at the service station
Conclusions

Theory

A vehicle has lighting devices in the front, rear, and sometimes on the sides (turn signals). Front headlights are needed to illuminate the road, while rear lights serve as a signal to other road users. There are also marker lights that simply make the vehicle visible.

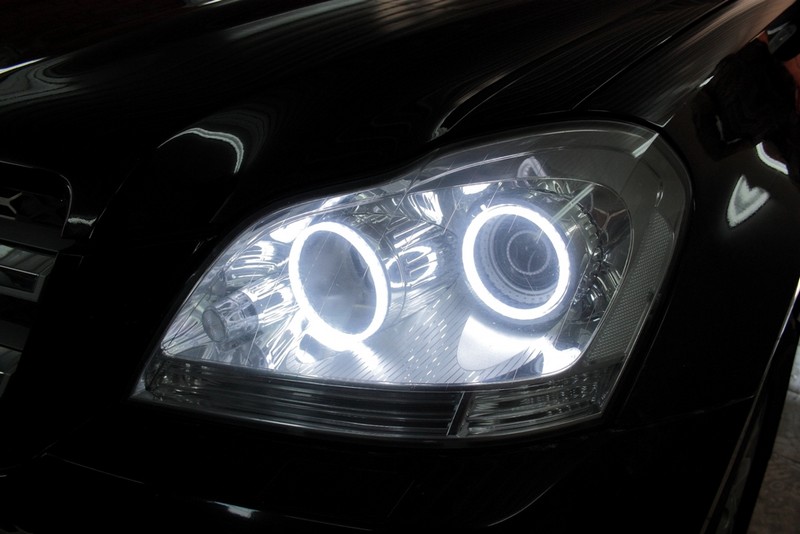

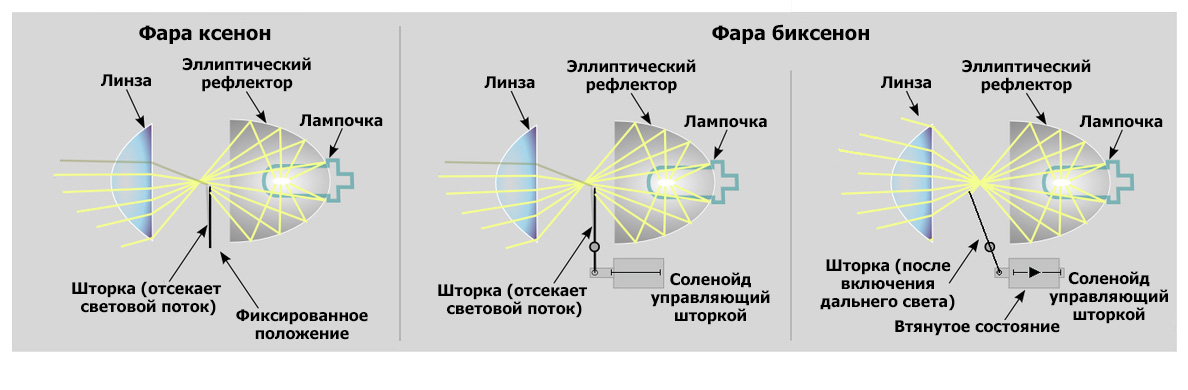

The headlight is a complex product made up of the following components:

• Housing with attachments to the body
• Lenses
• Bulbs (there may be two - for high and low beams)
• Wiring for power supply

In some models, the low-high beam comes from one bulb, in others - separate for each mode of lighting. The source of the light beam may be the most expensive and brightest, but it won't be of any use if the car's headlight adjustment is not done.

Reasons why it is necessary to adjust the headlight beam include:

• Replacing burnt-out bulbs with new ones
• Installation of one or two headlights
• Discomfort at night that suddenly appeared
• Replacing wheel rims and tires with products of a different diameter
• Drivers in the opposite lane flash their lights asking to turn off the high beams
• Long trip

Adjusting the car's headlight beam can be done by yourself or at a service station. It all depends on desire and technical capabilities. When doing this, it is important not only to follow your own wishes. You need to think about other drivers and comply with traffic rules.

How to adjust headlights yourself

You can achieve the desired result by performing four actions:

• Make markings on the wall - this will be a primitive stand
• Mark the bulbs
• Adjust the low beam
• Adjust the high beam

Self-adjusting the headlights differs from professional adjustment at a service station by the absence of a marked canvas with basic dimensions. Instead, a solid wall without windows and doors or a brick fence will suffice. The distance from the bumper edge to the vertical surface should be at least 7.5 meters, so when choosing a wall, this detail must be taken into account.

The marking for adjusting the car's headlights consists of five parallel lines - two horizontal and three vertical. The first line is the axis - the center of the car's symmetry, perpendicular to the surface. Parallel vertical lines are drawn on either side of it, coinciding with the centers of the headlights. Horizontal strip #1 is also drawn along the central line of the lights at the corresponding height from the ground. Line #2 is drawn 5 cm below.

Once the "stand" is marked and the iron horse is installed in front of it, make sure that the optics are on a level horizontal axis. This involves checking tire pressure, suspension spring elasticity, and the platform on which the procedure takes place. Any tilt to one side by a couple of centimeters during manual headlight adjustment will affect the illumination of the road surface. If one side of the body is higher than the other for some reason, the angle of illumination will be incorrect.

The surface of the lighting units must be cleaned of dirt and dust to ensure nothing interferes with the beam. The preparatory stages are now complete, and you can proceed to the actual headlight adjustment. Start by turning on the low beam.

How to properly adjust headlights

Each front lighting object has adjustment screws. These screws are used to set the angle of the bulb in the socket, redistributing the beam and its direction. Ideally, the areas up to line #2 should be illuminated on the stand - this is the light boundary. Before adjusting the headlight beam, it is important to know the basic principle - the optics of all vehicles are set up so that the beams go to the right in right-hand traffic and to the left in left-hand traffic. This is designed to avoid blinding oncoming traffic. The inclined segments must start at the points of intersection of the vertical marks of the center and horizontal line #1.

Adjusting the headlights manually is done one at a time and separately. By turning the adjustment screws on the back side of the headlights (you will need to open the hood), you need to achieve perfect results. After that, move on to the high beam.

Before adjusting the lenses in the headlights, familiarize yourself with the instructions for these products. Some models are equipped with devices with automatic or motorized angle adjustment. If the lens optics do not allow for adjustment, then in case of a malfunction or breakdown, both headlights will need to be replaced. In general, the principle of adjusting the lenses in the headlights is based on rotating the adjustment screws.

Headlight adjustment at the service station

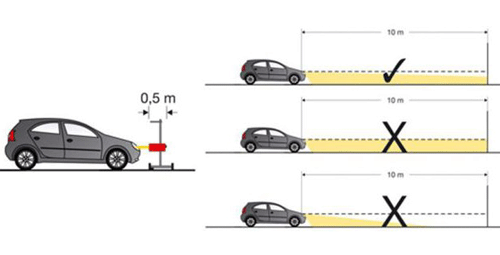

If you are unsure about how to adjust the headlights yourself, it is better to go to a service station. There, everything is done with the help of a special device. It is quite expensive, and buying it for a few uses is not cost-effective. If you know the basics, you can supervise the service station workers.

The main rules for adjusting the headlights using special devices are:

• Both the device and the vehicle are on perfectly level surfaces
• The device is set up using a water level, and the vehicle is adjusted relative to it
• Setting the beam angle with accuracy to tenths of a degree, along with the vehicle's optics
• Precise alignment of the beams and readings on the device

Most car owners consider this method the only way to properly adjust the headlights.

Conclusions

A properly functioning headlight is the key to safe and comfortable trips regardless of the time of day and weather conditions. Adjusting the headlights yourself or at a workshop when necessary will not take much time, but will bring the desired effect. Sometimes, just adjusting the headlights can make you see the world in a new light.
